Ultrasonic Cleaning System

Kaijo Corporation has been an innovative contributor and global leader among ultrasonic cleaner manufacturers for over 70 years. Ultrasonic cleaning systems use the energy of ultrasonic waves to provide powerful and precise cleaning of manufactured machine parts. These include ceramics, circuit boards, semiconductor wafers, medical tools, and optical components including LCDs and solar panels. Represented in North America by the Kaijo Shibuya America Inc. in Santa Clara, California, Kaijo seeks to provide the most innovative and advanced solutions available among industrial ultrasonic equipment manufacturers.

Megasonic Cleaning System

Quava Megasonic Cleaning System

Kaijo’s new Quava Megasonic cleaning system generator is designed for powerful and precise cleaning of semiconductors, Flat Panel Displays, hard disk, and solar components. It meets high level manufacturing cleaning requirements by effectively removing sub-micron particles.


Quava Mini Megasonic Cleaning System

Compact and versatile, the table-top Quava Mini Megasonic cleaning system provides multiple frequencies in one unit. The use of Megasonic frequencies (200kHz -1.6 MHz) provides for the most precise cleaning applications.




Quava Mega Puck Megasonic Cleaning System

Kaijo’s Quava Mega Puck Megasonic Cleaning System is designed for superfine cleaning of HDD Media, FPD glass, semiconductor wafers and semiconductor processing components. The Quava may be used to direct high power acoustic energy or for scanning across large surfaces. The generator may be used with Spot Shower or Mega Tube nozzles.
US-Shower-Megasonic-Cleaner

US Shower Megasonic Cleaner

Kaijo’s US Shower is a high frequency Megasonic cleaner that is suitable for both flat panel and wafer cleaning. Three standard models are available that will provide effective cleaning of an area ranging from 330 mm to 660 mm.




Quava-Spot-Shower-Megasonic-Cleaner

Quava Spot Shower Megasonic Cleaner

Kaijo’s Quava Spot Shower is designed for superfine cleaning of HDD Media, FPD glass and Semiconductor wafers. The Quava may be used to direct a high power spot of acoustic energy or for scanning across large surfaces. Quava Spot Shower generator may be used with Spot Shower or Mega Tube nozzles.


Ultrasonic Cleaning Transducer

Ultrasonic Cleaning System: Phenix III Turn Key

Kaijo’s Phenix III Turn Key Ultrasonic Cleaning System consists of our most cost effective ultrasonic generator, the Phenix III and a static polished stainless steel tank. The high reliability Phenix III may be used in sweep or fixed frequency modes. The gloss polished stainless steel tank is 3 mm thick to provide superior ultrasonic conditions. The system provides effective and precise cleaning for a wide variety of industrial applications.


High-Power-Ultrasonic-Generator

Quava High Power Ultrasonic Generator

Kaijo’s new Quava High Power Ultrasonic generator is designed for powerful and precise cleaning of machine parts, ceramics, circuit boards, medical tools, optic components, and food. It meets high level manufacturing cleaning requirements by effectively removing sub-micron particles. Adjustable frequencies provide flexibility to meet various cleaning requirements. Constant output is controllable with the digital display with upper and lower limit detector function.

1 MHz Ultrasonic Transducer Options: Bolt-On or Mounted

Kaijo’s (950 kHz) 1 MHz Ultrasonic Transducer provides options for either having it mounted or bolted on to either the bottom or side of a selected ultrasonic tank. The bolt-on and mounted types use heavy metal plates which transmit the sound waves in the liquid of the tank. The transducers are designed to operate in liquids at temperatures up to 80 degrees C and will withstand the cavitations created during normal operation.


40 kHz Ultrasonic Transducer: Immersible

The 38 kHz (40 kHz) Immersible Ultrasonic Transducer is enclosed in a hermetically sealed and polished 316L stainless steel housing. The heavy duty enclosure withstands cavitations and performance and will not degrade over time. The transducer can operate in the liquid of a bath or tank with temperatures up to 100 degrees centigrade and will provide high reliability for the most demanding applications.



Immersible Ultrasonic Transducers from Kaijo

The 38 kHz (40 kHz) Immersible Ultrasonic Transducer is enclosed in a hermetically sealed and polished 316L stainless steel housing. The heavy duty enclosure withstands cavitations and performance and will not degrade over time. The transducer can operate in the liquid of a bath or tank with temperatures up to 100 degrees centigrade and will provide high reliability for the most demanding applications.



Dissolved Gas Control

3M™ Liqui-Cel™

Advanced Dissolved Gas Control

3M™ Liqui-Cel™ Membrane Contactors provide efficient dissolved gas control in a compact design. Capable of adding gases to or removing dissolved gases and bubbles from compatible liquid streams, these gas transfer devices utilize hollow fiber membrane technology that may help facilities around the world improve operating efficiency, performance and protect product quality.

3M™ Liqui-Cel™ EXF Series Membrane Contactor

Capable of achieving very low dissolved gas levels down to 1 ppb O2 and 0.5 ppm CO2 at outlet with proper system design




3M™ Liqui-Cel™ EXF Series Membrane Contactor Cartridge

Utilizes hollow fiber membrane that is impermeable to chemically compatible liquids, yet gas permeable enabling efficient dissolved gas removal Cartridge replacements available for our SP-4x13 and SP-4x28 series*

3M™ Liqui-Cel™ SP Series Membrane Contactor

Ideal for use with compatible solutions containing organic solvents and surfactants, such as inks, coatings, photo resists, emulsions and plating solutions



3M™ Liqui-Cel™ MM Series Membrane Contactor

Utilizes microporous hollow fiber membrane, similar to the EXF series, but devices have either transverse liquid flow outside of the fibers or parallel flow designs where liquid flows on the inside of the hollow fiber.Compact design for tight space requirements

Water Quality Monitor (Pure and Waste Water Treatment)

From our U.S. headquarters in Collegeville, Pennsylvania, we design, manufacture, and distribute analytical instruments based on electrochemical and optical sensors. We specialize in the areas of toxic gas detection and water quality measurements, continuing to lead the way in development of reliable monitoring systems. Our capabilities in the area of sensor design and manufacture allow us to offer the kind of application support needed for the most demanding applications.

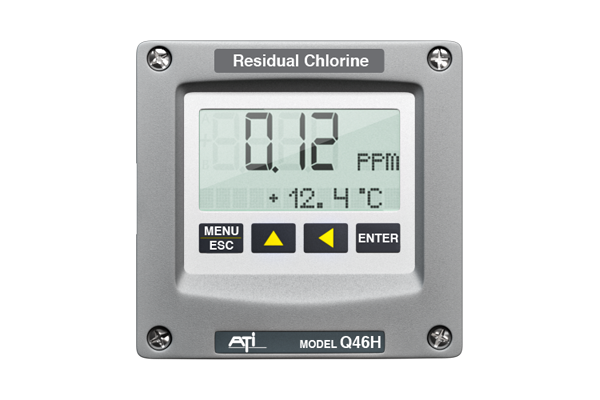

Q46H/62-63 Residual Chlorine Monitor

ATI's Chlorine Monitor is an upgraded version of our proven Q45H system for continuous water quality monitoring of free or combined chlorine.The Q46H system uses a polarographic membraned sensor to measure chlorine directly, without the need for chemical reagents.

Q46H/64 Dissolved Ozone Monitor

Ozone Monitor for Ozonation Systems provides an economical and reliable measurement system for water quality monitoring and controlling ozone treatment systems.





Q46/88 Suspended Solids Monitor

Monitoring suspended solids in wastewater and industrial process water can be useful for either process control or for alarming of unusual conditions.





portable quality system

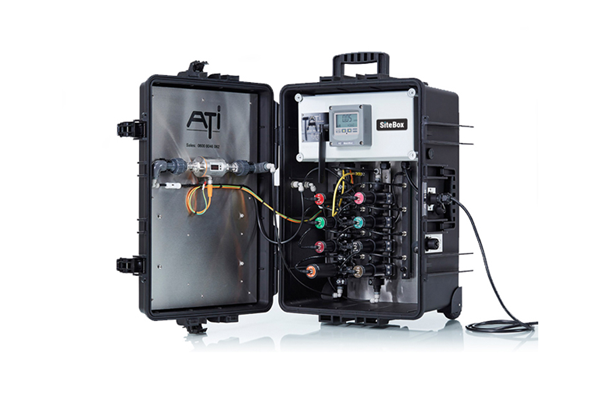

PQ45 Portable Monitoring & Data Logger

ATI has developed an instrument to fill this need. Our Series PQ45 is a portable water quality monitoring system that can be set up quickly and easily in almost any location to provide short term data on residual chlorine, and can also include pH measurement in the same package. ​
ammonia

Q46N Dissolved Ammonia Monitor

Continuous water quality monitoring of ammonia is becoming increasingly important for plant operations and process control. Unfortunately, on-line ammonia monitors are generally very expensive, complex, and labor intensive instruments.


Total Organic Carbon and Portable DI Water System

Since 1993 we produce water purification systems. We have continuously expanded our activities on the analysers.

We are one of the top players in our core markets of water purification, TOC measurement, amino acid analysis and ion chromatography, offering an outstanding level of technology and quality such as EDI, post column derivatization with Ninhydrin and NDIR TOC detection.

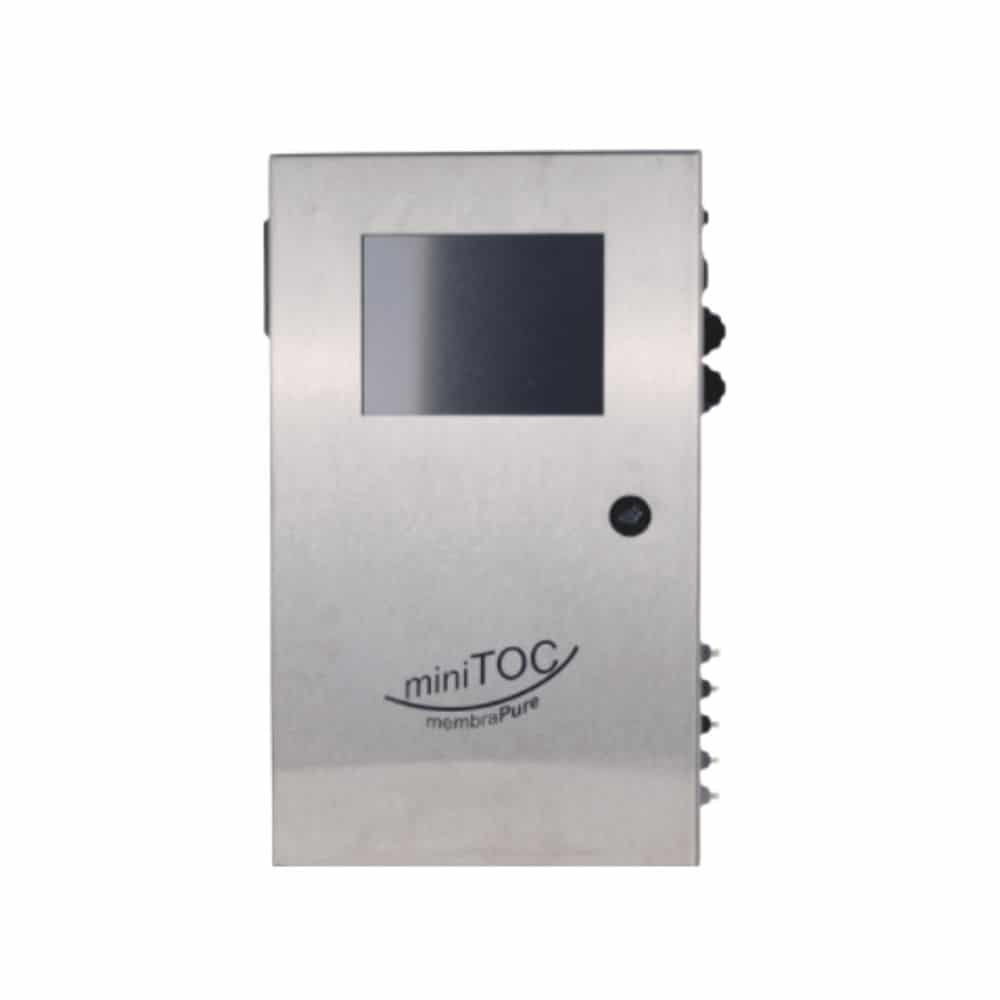

miniTOC

The miniTOC instrument uses the classic flow-through concept for online TOC control. The efficient UV oxidation of organic compounds by the “direct surface” principle in combination with conductivity detection guarantees the high precision of the measured values.






unitoc-360-02-1024x683

uniTOC

The precise high definition instruments for the online and offline determination of TOC from tap water to ultrapure water. Two innovative instruments for TOC analysis, uniTOC online and uniTOC lab, combine high-end analytical components certified to DIN EN 1484. The graphical control with the 10” touchscreen display and the data management of the control and analysis software meet all international standards for the determination of TOC.
aquity 2

Aquinity² P10

The Aquinity² P10 ultrapure water system is equipped with a reverse osmosis (RO) cell to produce deionised water directly into an integrated 10l tank. Aquinity² models produce ultrapure water directly from municipal or potable tap water. In the next step Type I grade water is produced with a polisher cartridge. The Aquinity² P10 model is ideal for laboratories with a limited daily need for ultrapure water.


auqa ro2

AquaRO² & EDI²

Both systems are equipped with a pretreatment of activated carbon and softening components. AquaRo² systems are equipped with a reverse osmosis (RO) and EDI² with an additional electro deionization (EDI) cell to produce de-ionized water of Type II. The systems are equipped with 10 l, 35 l, 70 l or an individual sized storage reservoir which are filled with a production rate of 5-40 l/h. The de-ionized water can be dispensed with a fixed and flexible dispenser. ​

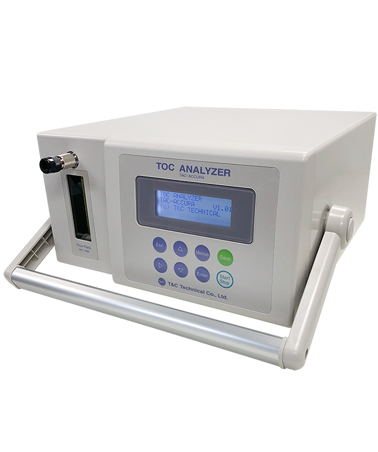

Accura H

ACCURA-R

Ultra pure water USP/EP, CE, CSA approval faster response of on-line continuous TOC measurement analysis possible to oxidize the complex organic substance by high power UV lamp No needs for reagents, gases, peristaltic pump, etc.
Accura H

ACCURA-H



Pharmaceutical WFI/PW




Accura H

ACCURA-SX



Semiconductor super ultra pure water



dpu 414

DPU-414(Dedicated Printer)



DPU-414 (Dedicated Printer) Application: ACCURA



Liquid Particle Monitoring

Particle Measuring Systems (PMS) is the inventor of laser based-particle counting, and we continue to lead the field with our dedication to hiring and training industry professionals. Our experts are recognized as thought leaders, evidenced through our speaking requests, webinars, authored papers and high education levels.

LiQuilaz® II S Series Liquid Particle Counter

LiQuilaz® II optical liquid particle counters are volumetric monitors with a variety of sizing sensitivities as low as 0.2 µm. They provide high precision analysis for most process chemicals, including hydrofluoric acid and hot corrosive chemicals up to 306 °F (152 °C).

LiQuilaz® II Liquid Particle Counter E Series

Sensitivity range: 1.5 - 125 µm

The LiQuilaz II E15P, E20, and E20P optical liquid particle counters are volumetric monitors with sizing sensitivities from 1.5 – 125 µm.





hslis_m65e-1

HSLIS-M65e Liquid Particle Counter

Sensitivity range: 0.065 - 0.2 µm

Provides continuous, real-time monitoring of contamination levels in corrosive liquids, including hydrogen fluoride (HF)






hslism100e-1

HSLIS-M100e Liquid Particle Counter

Sensitivity range: 0.1 - 1.0 µm

Provides continuous, real-time monitoring of contamination levels in medium-grade deionized water systems.






sls-1040-e1447270844156

Syringe Liquid Particle Sampler

Uses a precision syringe and simple flow-path for delivering chemical samples from a sample vessel or chemical container, directly to the particle sensor




CLS-700 T Corrosive Liquid Particle Sampler

A compression sampler combined with a LiQuilaz® II particle counter for effective measurement of particles in fluids contained in unpressurized vessels.


apss2000-1

APSS-2000 Parenteral Particle Counter

Sizes and counts suspended particulate matter in a wide range of liquids, including parenterals, to meet all current U.S., European and Japanese Pharmacopoeia standards.
ultrachem-40-thumb

UltraChem® 40 Liquid Particle Counter

Sensitivity range: 40 - 125 nm

The UltraChem® 40 Liquid Particle Counter gives you reliable contamination monitoring with the ability to detect 40 nm particles in chemicals with high molecular scatter.

Ultra DI® 50 Liquid
Particle Counter

Sensitivity range: 0.05 - 0.2 µm

Liquid Particle Counter designed for ultrapure water systems: its low zero count, large sample volume and high counting efficiency provide unsurpassed performance at 50 nm sensitivity.

Surfex® Parts Cleanliness Testing Station

Know whether or not your parts are truly clean A completely integrated ultrasonic tank that measures particle levels on a wide variety of complex-shaped parts.

Ion Exchange Resin

An integral business group of the Jacobi Carbons AB group, which is a wholly owned subsidiary of Osaka Gas Chemicals Co., Ltd. (OGC). OGC acquired Jacobi in 2014 to add us to their existing line of filtration technologies in Japan (Japan EnviroChemicals, Inc., or JEC). A supplier of a wide selection of ion exchange resins for a variety of industries, who is able and willing to expand ion exchange products and technologies into new market areas.

W A C

WAC are polyacrylic, gel or macro ion exchange beads. They have the unique carboxylic acid functions.

Applications of WAC resins include:

  • Temporary Hardness Removal
  • Dealkalisation
  • Earth Alkali
  • Heavy Metal Removal

CHELATING

These are a special set of resins for ion exchange processes where there is a high presence of competing ions.

Applications of Chelating resins include:

  • Waste water treatment
  • Heavy metal removal
  • Boron removal
  • Mercury removal
  • Brine softening

MIXED BED RESIN

Mixed bed resins are composed of strong cationic and anionic ion exchangers based on a polystyrene-divinylbenzene matrix that are usually sold in the ready to use (active) ionic forms.

Applications of mixed bed resins include:

  • Water purification
  • Polishing process water
  • Demineralisation

S A C

Strong acidic cation resins are bead sized co-polymers (mainly polystyrene-divinylbenzene) with a sulfuric group which attracts cations. Resinex SAC comes in gel or macroporous types and are available in several bead sizes to adapt to different applications.

Applications of SAC resins include:

  • Water softening
  • Demineralisation
  • Metal removal
  • Decolorisation

S B A

Strong base anion resins are bead sized co-polymers (mainly polystyrene-divinylbenzene) with a tertiary or quaternary ammonium group which removes anions in various processes. Resinex SBA comes in gel or macroporous type and is available in different bead sizes.

Applications of SBA resins include:

  • Demineralisation
  • Decolorisation
  • Deashing
  • Desulfunation
  • Nitrate Removal
  • FMA removal

W B A

Weak base anion resins are bead sized co-polymers (mainly polystyrene-divinylbenzene) with tertiary ammonium groups, which are usually macroporous in structure.

Applications of WBA resins include:

  • Water remediation
  • Organic material removal
  • Demineralisation
